Ductless Mini Split

EC-1K-DV SERIES
The EC-1K-DV model is designed to accommodate multiple electrical requirements
within one pump. The DV suffix indicates that the pump is capable of operating
from a wide range of supply voltage to maintain consistent pump performance.

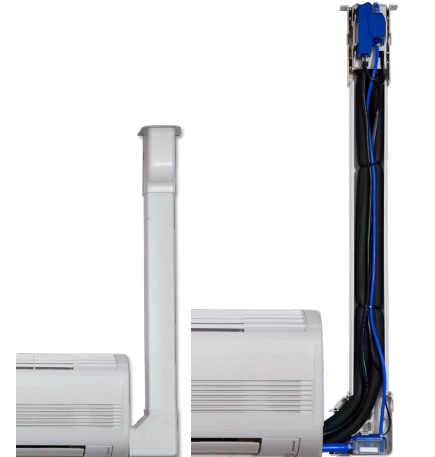

EC-1K-DV Line Set Duct provides space to install the EC-1-DV, line-set pipes,
electrical wiring and drain hoses providing a clean, finished look in any décor.
The pump is easily accessible for maintenance or cleaning by removing the cover
(no tools required). When using the EC-1K-DV Line Set Duct, the EC-1-DV pump is
always properly positioned to maximize the quiet operation of the pump and
keep the reservoir level for ideal operating performance.

• Includes EC-1-DV Mini Condensate Pump
• 21 dB(A)*
• 2.7 gph (10 lph) flow
• 33 ft (10 m) shut off (max. recommended)
• Hall effect switching
• Large inlet filter
• Multi-size hose drain adapter fits all popular drain hose connections
• 2-year warranty
• Line Set Kit
• Right- or left-side installation options
• 2.1" x 3.0" (5.3 cm x 7.6 cm) Line Set Duct inside dimension
• 19.7" (50 cm) drain hose tubing
• Detachable power cord 84" (213.4 cm)
• 90° “elbow” for locating pump reservoir
• 31.5" (80 cm) straight line set cover
• Room inside Line Set Duct for 3/8" and 5/8" line set pipe
• Twist motion snap-lock clips and cable ties to secure the line set
• Pump enclosure and pump mounting bracket
• Wall fasteners included (to secure Line Set Duct to wall)
• Air conditioner trim and bracket for “finished” look
• Includes ceiling plate when pump enclosure
